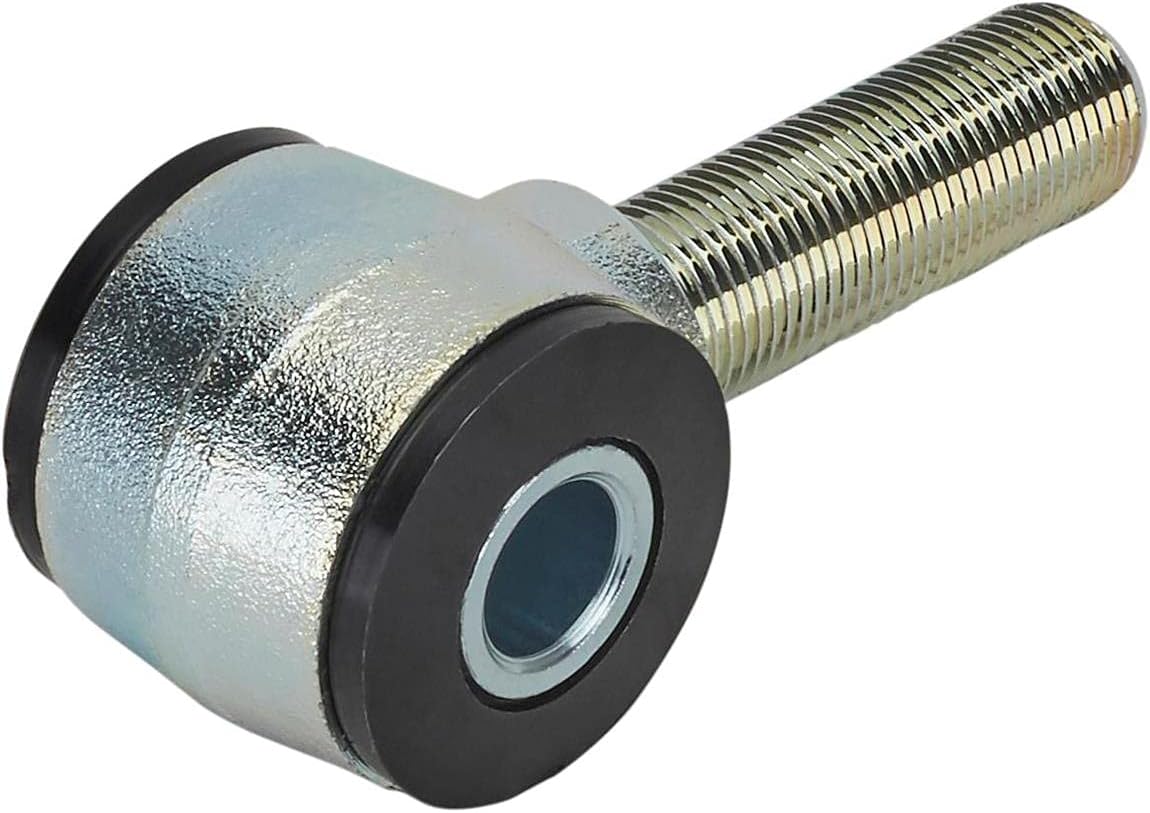

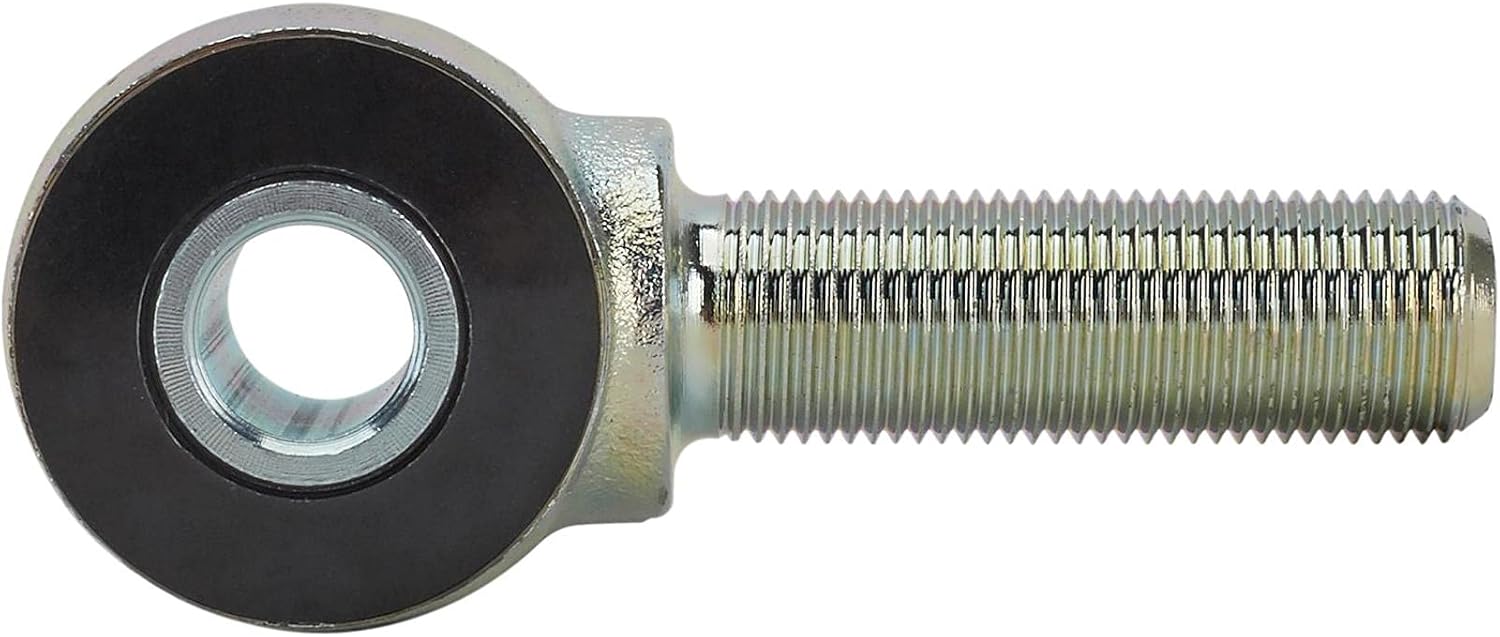

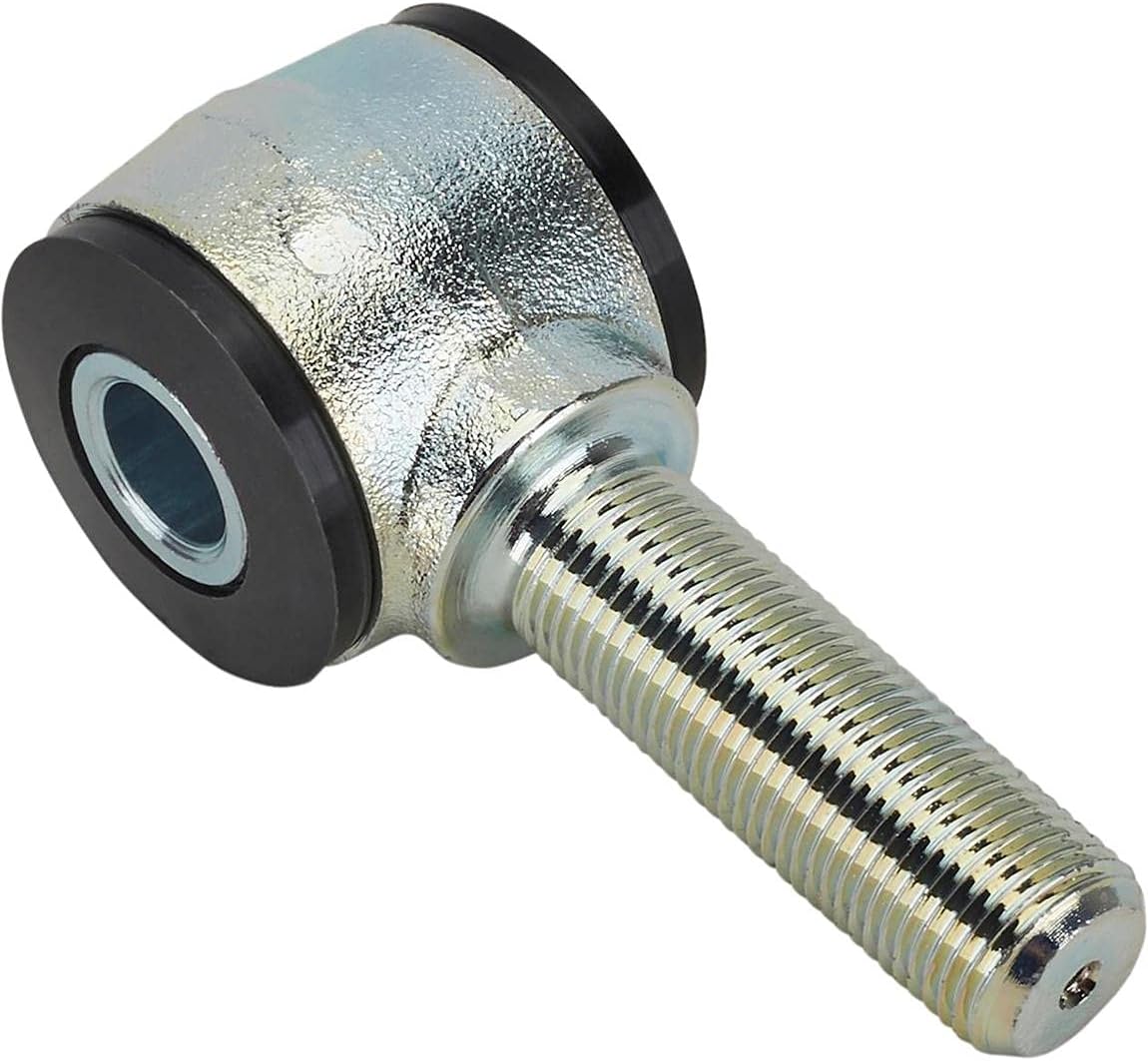

Speedway Motors Forged Steel 4 Bar Rod End, 5/8-18 Left Hand Thread Suspension Link End with Polyurethane Bushing and 1/2 Inch Steel Sleeve, Zinc Plated Straight Rod End

Don't settle for a weak 4-bar end made from simple tubing welded to a bolt. These Speedway rod ends are crafted from forged steel to provide exceptional strength and long-lasting durability. Features a 5/8"-18 left-hand threaded shank, and the polyurethane bushing includes a steel sleeve that accepts a 1/2" bolt. Left-hand threads Mounting eye is perpendicular to the threaded shank Center of mounting eye to end of threads: 2-7/8" Specs: Overall width: 1.370" Rod end width: 1.050" Rod end I.D.: 1.125" Steel sleeve O.D.: 0.750" Steel sleeve I.D.: 0.500" Threaded shaft length: 1-7/8"

• Forged Steel 4 Bar Rod End – One piece forged steel rod end provides superior strength and reliability compared to cast or welded suspension link ends.
• 5/8-18 Left Hand Thread Shank – 5/8"-18 LH threaded shaft allows easy suspension link length adjustment when paired with a right hand threaded rod end on the opposite side.
• Polyurethane Bushing Assembly – Polyurethane bushing with a 1/2 inch ID steel sleeve helps stiffen the suspension link while reducing vibration and harshness.
• Straight Mounting Eye Design – Mounting eye is perpendicular to the threaded shank for straight style installation in 4 bar suspension link setups.
• Zinc Plated Steel Construction – Durable steel body and sleeve with plated finish for dependable strength and long service life in suspension applications.
